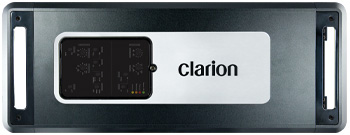

  HX-Series 4 Channel Amplifier

Clarion's HX-Series amplifiers supply the power to drive a wide variety of in-car entertainment systems, whether it is ultimate quality, extreme looks, or system expansion and flexibility.

amplifierADP4000

For decades Clarion has offered advanced power Amplifiers to accommodate a variety of In Car Entertainment (ICE) systems.

Our latest lineup employs high quality materials and leading-edge design for the sole purpose of providing the muscle to drive your music



- High damping factor for ultra low distorsion
- Ultra low noise and high input sensitivity (up to 5 Vrms)
- Extended frequency response for absolute fidelity on the entire audible range
- User-friendly built-in 2-way crossover filter to cover any speakers configurations
- 2 ohms stable to drive up to 8 speakers (4 ohms) for more than 800W RMS
  true power (4CH configuration)



FEATURES & SPECIFICATIONS
Power supply

Voltage
11 ~ 15 VDC
Minimum idling current 2.2 A
Idling current when off
0.02 mA
Consumption @ 14.4 VDC (MAX musical power)
75 A
Remote IN Voltage
7 ~ 15 VDC (1.3 mA)
Remote OUT Voltage
12 VDC (50 mA)
Internal fuse
3 x 30 A

Amplifier stage
Total Harmonic Distortion (1 kHz @ 4 O) 0.07%
Frequency Response (-3 dB) 4 Hz ~ 100 kHz
S/N ratio (A-weighted @ 1 VRMS) >105 dB
Damping factor (1 kHz @ 4 O) >120
Input sensitivity (PRE IN) 0.3 ~ 5 V
Input sensitivity (Speaker IN) 1.4 ~ 24 V
Input impedance (PRE IN) 15 kO
Input impedance (Speaker IN) 5 kO
Load impedance (MIN)
• 6 Channels 4 x 2 O + 2 x 1 O
• 5 Channels 5 x 2 O
• 4 Channels 2 x 4 O + 2 x 1 O 2 x 2 O + 2 x 1 O
• 3 Channels 2 x 4 O + 1 x 2 O 2 x 2 O + 1 x 2 O
Nominal output power (RMS) PN @ 12 VDC
0.3% THD
125 W x 2 + 130 W x 2

6 Ch Output power (RMS) @ 14.4 VDC 1% THD
• 6 Channels 6 Ch x 4 O -
• 6 Channels 6 Ch x 2 O -
• 6 Channels 4 Ch x 2 O + 2 Ch x 1 O -
• 5 Channels 5 Ch x 2 O -
4 Ch Output power (RMS) @ 14.4 VDC 1% THD
• 4 Channels 2 Ch x 4 O + 2 Ch x 4 O 130 W x 2 + 135 W x 2
• 4 Channels 2 Ch x 2 O + 2 Ch x 2 O 200 W x 2 + 215 W x 2
• 3 Channels 2 Ch x 4 O + 1 Ch x 4 O 110 W x 2 + 460 W
• 3 Channels 2 Ch x 4 O + 1 Ch x 2 O 100 W x 2 + 700 W
• 3 Channels 2 Ch x 2 O + 1 Ch x 4 O 170 W x 2 + 430 W

Inputs/Outputs/Filters
OUT MODE -
IN A Ch PRE/Speaker
IN B Ch PRE/Speaker
IN C Ch PRE/Speaker
OUT (Full) PRE
A Ch Filter BYPASS/HI-PASS [50 Hz ~ 5 kHz] (12 dB/Oct.)
B Ch Filter BYPASS/HI-PASS/LO-PASS adjustable
[50 Hz ~ 5 kHz] (12/24(Mono)dB/Oct.)
C Ch Filter -
Subsonic OFF/20/30 Hz (24 dB/Oct.)
Active with B Ch. LO-PASS L+R
Sub remote volume control -5 ~ +5 dB Active with B Ch. LO-PASS 24 dB/Oct. L+R

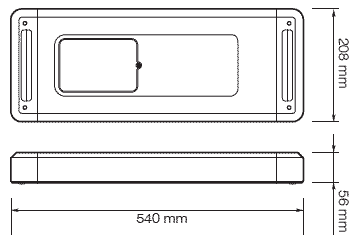

Size
D x L x H 208 x 540 x 56 mm
Weight (Kg) 6.86
